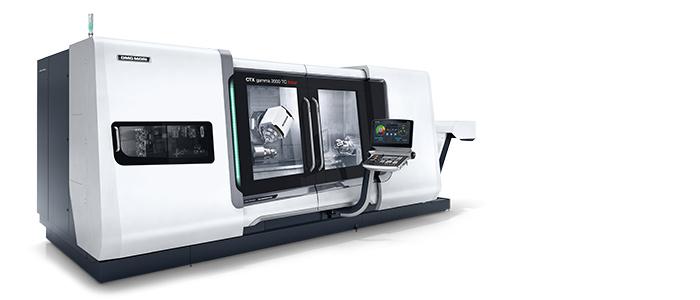

CTX gamma 2000 TC 4A / linear
CTX gamma 2000 TC 4A / linear
開創性的ShopTurn 3G多通道數控系統并支持更多刀架
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
集合多種技術和多種加工方法于一身無疑是現代加工業的發展趨勢。除常規設備外，例如銑車復合加工主軸，刀庫和副主軸，CTX beta TC和CTX gamma TC系列復合加工機床還提供更多選配。 6面完整加工在許多行業中具有決定性的競爭優勢。工件日益復雜的現實需要使用更多加工技術，例如齒輪銑削和5軸聯動加工。
Highlights CTX gamma 2000 TC 4A / linear
- 12位刀塔
- Siemens SINUMERIK Operate帶ShopTurn 3G
- 優化的工藝鏈提供更高產能
- DIN與面向車間編程間自由選擇 -DIN編程速度快和ShopTurn 3G編程容易
- 通過增加刀架（選配）提高加工靈活性和提高中小批量生產效率
- 大功率車銑復合加工主軸，帶NC數控B軸和轉矩電機驅動
- 縮短30 %刀具裝夾時間
- 水冷主軸電機，最大扭矩4,000 Nm
- 刀具接口HSK-A63，選配Capto C6，Capto C8，HSK-A100
.jpg)

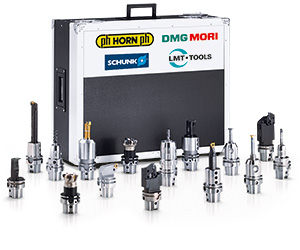

HORN / Schunk / LMT刀具套件
高性能套件，包括外圓和內圓車刀，徑向和軸向沖孔刀，以及螺紋刀，切槽和鉆孔刀。
技術參數
CTX gamma 2000 TC 4A / linear
機床型號 |
|
CTX gamma 2000 TC 4A / linear |
|
加工區 |
|
|
|
Swing diameter, max. |
mm |
700 |
|
Turning diameter, max. |
mm |
630 | (700)1) |
|
Turn-mill spindle carrier (top) |
|
|
|
Cross travel (X1) |
mm |
650 (-20) |
|
Vertical travel (Y1) |
mm |
±200 |
|
Longitudinal travel (Z1) |
mm |
2,050 |
|
刀塔滑座（下） |
|
|
|
Cross travel (X2) |
mm |
210 |
|
垂直行程（Y2）* |
– |
|
|
Longitudinal travel (Z2) |
mm |
1,910 |
|
Main spindle |
|
|
|
Spindle head (flat flange) |
mm |
220h5 | (A15)* |
|
Bar capacity |
mm |
102 |
|
Spindle diameter in the front bearing |
mm |
160 | (220)* |
|
夾緊卡盤 |
mm |
250 – 500 | 400 / 500 | 500 / 630 |
|
驅動功率（40% / 100% DC） |
kW (AC) |
45 / 35 | (52 / 40)* | (59 / 50)* |
|
扭矩，最大(40/100% DC) |
Nm |
770 / 600 | (2,200 / 1,700)* | (4,000 / 3,400)* |
|
Max. rotation speed |
rpm |
4,000 | (2,500)* | (2,000)* |
|
副主軸 |
|
|
|
Spindle head (flat flange) |
mm |
170h5 | (220h5)* |
|
Spindle diameter in the front bearing |
mm |
130 | (160)* |
|
Chuck* |
mm |
250 / 315 | 315 – 500 |
|
驅動功率（40% / 100% DC） |
kW (AC) |
34 / 25 | (45 / 35)* | (52 / 40)* |
|
扭矩，最大(40/100% DC) |
Nm |
380 / 280 | (770 / 600)* | (2,200 / 1,700)* |
|
Max. rotation speed |
rpm |
5,000 | (4,000)* | (2,500)* |
|
進給驅動AC，刀架1，快移速度X / Y / Z |
m/min |
40 / 40 / 30 (60)** |
|
Turning-milling spindle |
|
|
|
Tool reception |
|
HSK-63A (Capto C6)* I (HSK-100 / Capto C8)* |
|
Spindle speed, max. |
rpm |
12,000 | (18,000)* | (8,000)* |
|
驅動功率，最大（40% DC） |
kW |
22 | (23)* | (32)* |
|
Torque, max. (40% DC) |
Nm |
100 | (105)* | (145)* |
|
B軸（轉矩電機驅動） |
|
|
|
Swivel range (B) |
degrees |
240 |
|
Torque, max. (40% DC) |
Nm |
2,800 |
|
Hydraulic clamping |
Nm |
4,000 |
|
Tool magazine |
|
|
|
刀位數量 |
Disk 36 | (Chain 120)2) |
|
|
Tool length |
mm |
400 |
|
Tool weight G1 / G2 |
kg |
10 | (6 / 12)2) |
|
Tool diameter, max. (with pocket empty) |
mm |
80 (140) |
|
Feed drive AC, slide 2, rapid traverse X2 / Y2* / Z2 3) |
m/min |
30 / 30 |
|
Tool mount (turret, bottom)3) |
|
|
|
刀位數量 |
|
12 |
|
Driven tool stations |
12 |
|
|
Shaft diameter (according to DIN 69880) |
mm |
40 |
|
驅動功率（40%DC） |
kW |
9.4 |
|
Torque, max. (40% DC) |
Nm |
30 |
|
Max. rotation speed |
rpm |
4,000 |
|
Tailstock |
|
|
|
尾座行程（自動運動） |
mm |
1,910 |
|
Centre location |
MT |
6 |
|
Max. tailstock pressure |
daN |
1,800 |
|
|
|
|
|
Machine weight with control cabinet |
kg |
24,000 |
* Optional
** for linear version
1) in combination with option 120-chain magazine
2) Option 120-chain magazine (only for DMG ERGOline® control with Siemens control)
3) Optional slide 2 with turret underneath only for DMG ERGOline® control with Siemens 840D
控制系統 |
|
CELOS® - 兼容，統一，一致。 |
