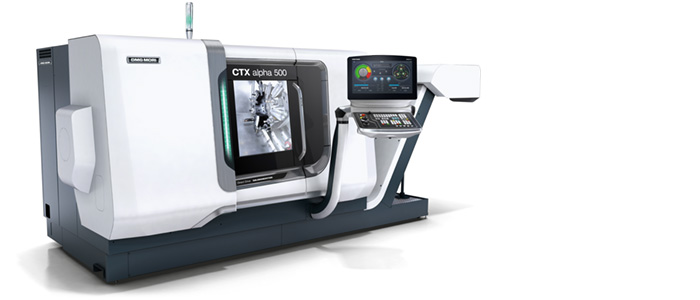

CTX alpha 500
CTX alpha 500
第5代CTX系列車床
.jpg)
.jpg)
.jpg)
.jpg)
第5代新CTX系列車床功率更大，扭矩更大和精度更高。加工區更大，靈活性更好和人機更友好。GILDEMEISTER的CTX系列萬能車床為全新風格設計，采用高科技部件制造，例如一體化的電主軸，加速度大和減速快。標配動力驅動刀和尾座。選配提高靈活性的Y軸和副主軸。
Highlights CTX alpha 500
- 完整加工的副主軸（選配）
- 堅固鍥形滑座結構的Y軸（選配）

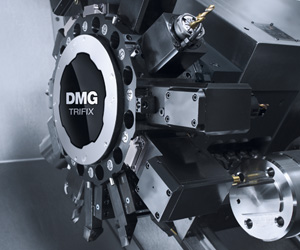

- TRIFIX©高精度刀具接口，換刀速度快精度高，穩定性更好：
- VDI兼容性：VDI 30標準刀具系統，可用VDI夾刀

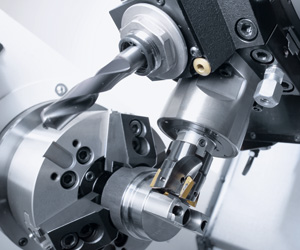

- 直接驅動技術（選配），性能更強和加工精度更高：
- 為強力切削提供更高速度和更高性能（最高轉速10,000 rpm）
- 工作更平穩和溫度特性更穩定，因此加工精度更高
- 選配16位刀塔

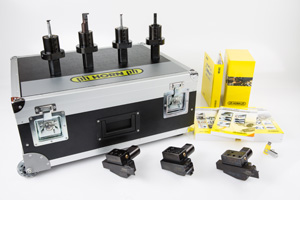

切槽和切斷。刀刃精度和加工能力
無論加工哪種合金材質，Horn總能提供創新的解決方案。高效，經濟，高精度；完成完美加工過程所需的個性化解決方案。
.jpg)
.jpg)
.jpg)
技術參數
CTX alpha 500
|
機床型號 |
|
CTX alpha 500 |
|
|
加工區 |
|
|
|
|
Swing diameter, max. |
mm |
500 |
|
|
Turning diameter, max. |
mm |
200 |
|
|
Distance between the spindle and the tail stock (without feed) |
mm |
700 |
|
|
Max. work piece length with a tailstock (can be machined) |
mm |
525 |
|
|
Distance from the main spindle to the counter spindle (without feed) |
mm |
780 |
|
|
Max. work piece length on the counter spindle (can be machined) |
mm |
520 |
|
|
Main spindle |
|
|
|
|
Integrated motor spindle (ISM) with a C-axis (0,001°) |
rpm |
6,000 (ISM 52 Plus) |
|
|
驅動功率（40% / 100% DC） |
kW |
27 / 20 |
|
|
扭矩（40/100% DC） |
Nm |
170 / 127 |
|
|
Spindle head (flat flange) |
mm |
140 h5 |
|
|
Spindle diameter in the front bearing |
mm |
100 |
|
|
Clamping tube inner diameter |
mm |
52 (67)* |
|
|
Max. collet chuck diameter* |
mm |
215 |
|
|
Counter spindle* |
|
|
|
|
Integrated motor spindle (ISM) with a C-axis (0,001°) |
rpm |
6,000 (ISM 36) |
|
|
驅動功率（40% / 100% DC） |
kW |
16.2 / 12.6 |
|
|
扭矩，最大(40/100% DC) |
kW |
62 / 48 |
|
|
Spindle head (flat flange) |
mm |
140 h5 |
|
|
Spindle diameter in the front bearing |
mm |
90 |
|
|
Clamping tube inner diameter |
mm |
37 |
|
|
Max. collet chuck diameter* |
mm |
175 |
|
|
Turret (standard) |
|
|
|
|
Tool holder according to VDI / DIN 69880 |
mm |
12 x VDI 30 |
|
|
Number of driven tools / Max. speed |
rpm |
12 / 5,000 |
|
|
Drive power / Torque (40%) |
kW // Nm |
5.4 / 18 |
|
|
Switching time, 30° |
Sec. |
0.4 |
|
|
Turret slide (top) with a tailstock |
|
|
|
|
X / Y* / Z |
mm |
190 / ±40 / 525 |
|
|
快移速度（X/Y/Z） |
m/min |
30 / 22.5 / 30 |
|
|
進給力 (X/Y/Z) |
kN |
2.8 / 2.8 / 5.6 |
|
|
Turret slide (top) on the counter spindle |
|
|
|
|
X / Y* / Z |
mm |
190 / ±40 / 520 |
|
|
快移速度（X/Y/Z） |
m/min |
30 / 22.5* / 30 |
|
|
進給力 (X/Y/Z) |
kN |
2.8 / 2.8 / 5.6 |
|
|
副主軸刀架 |
|
|
|
|
X / Z |
mm |
- / 550 |
|
|
快移速度X / Z |
m/min |
- / 30 |
|
|
Feed force X / Z |
kN |
- / 5.6 |
|
|
Tailstock |
|
|
|
|
行程（液壓） |
mm |
500 |
|
|
力 |
kN |
6 |
|
|
Centre location |
MT |
4 |
|
|
|
|
|
|
|
機床重量 |
kg |
4,650 |
|
