高端萬能車床，大工件直徑600 mm和工件長度2,000 mm
.jpg)
.jpg)
.jpg)
.jpg)

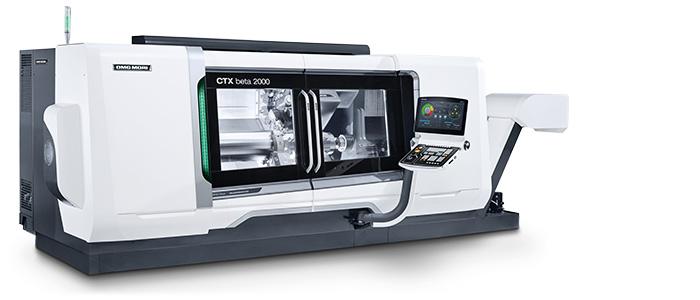

全新風格設計機型是大獲成功且超過300臺銷售記錄的CTX 620型的新機型，并在多個重要方面得到加強。主要改進在加工區，主軸和刀塔方面。例如，全部機型配置的車削直徑現在是600 mm和車削長度是2,000 mm。X軸行程為415 mm，同時選配的Y軸行程為+/- 75 mm,并繼續提供500 mm的卡盤。此外，棒料尺寸為93 mm（選配102 mm），因此可加工更大直徑的棒料。
Highlights CTX beta 2000
- 高持續精度：X軸直接位置測量系統和直線驅動（選配）
- 標配機型的主軸為ISM102，4,000 rpm，45 kW和770 Nm，選配ISM102 plus，2,500 rpm，52 kW和2,200 Nm

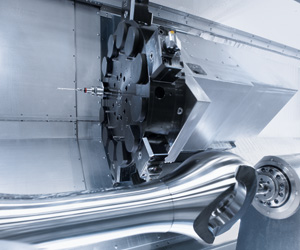

- 12刀位VDI50刀塔，配4,000 rpm和85 Nm扭矩，6個方刀位，高穩定性；也可提供16刀位VDI40刀塔

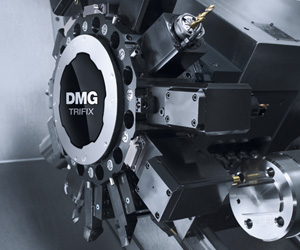

- 直接驅動技術的刀塔（選配），10,000 rpm和34 Nm， 配TRIFIX高精度快速換刀系統（通過齒輪減速后扭矩可達160Nm）
切槽和切斷。刀刃精度和加工能力
無論加工哪種合金材質，Horn總能提供創新的解決方案。高效，經濟，高精度；完成完美加工過程所需的個性化解決方案。
.jpg)
.jpg)
械有限公司/sawadacnc/clip_image007_0000.gif){kind=small}
.jpg)
|
機床型號 |
|
CTX beta 2000 |
|
加工區 |
|
|
|
Swing diameter, max. |
mm |
800 |
|
Turning diameter, max. |
mm |
600 |
|
Distance between the spindle and the tail stock (without feed) |
mm |
2,285 |
|
Max. work piece length with a tailstock (can be machined) |
mm |
2,000 |
|
Distance from the main spindle to the counter spindle (without feed) |
mm |
- |
|
Max. work piece length on the counter spindle (can be machined) |
mm |
- |
|
Main spindle |
|
|
|
Integrated motor spindle (ISM) with a C-axis (0,001°) |
rpm |
4,000 (ISM 102) |
|
驅動功率（40% / 100% DC） |
kW (AC) |
45 / 35 |
|
扭矩（40/100% DC） |
Nm |
770 / 600 |
|
Spindle head (flat flange) |
mm |
220 h5 |
|
Spindle diameter in the front bearing |
mm |
160 |
|
Clamping tube inner diameter |
mm |
104 (111)* |
|
Max. collet chuck diameter* |
mm |
500 |
|
Counter spindle* |
|
|
|
Integrated motor spindle (ISM) with a C-axis (0,001°) |
rpm |
- |
|
驅動功率（40% / 100% DC） |
kW (AC) |
- |
|
扭矩（40/100% DC） |
mm |
– |
|
Spindle head (flat flange) |
mm |
- |
|
Spindle diameter in the front bearing |
mm |
- |
|
Clamping tube inner diameter |
mm |
- |
|
Max. collet chuck diameter* |
mm |
- |
|
Turret (standard) |
|
|
|
Tool holder according to VDI / DIN 69880 |
mm |
12 x VDI 50 + 6 Blocktool |
|
Number of driven tools / Max. speed |
rpm |
12 / 4,000 |
|
Drive power / Torque (40%) |
kW // Nm |
12.5 / 85 (25% DC) |
|
Switching time, 30° |
Sec. |
0.44 |
|
Turret slide (top) with a tailstock |
|
|
|
X / Y / Z |
mm |
– |
|
快移速度X/Y/Z軸 |
m/min |
– |
|
進給力 (X/Y/Z) |
kN |
7.5 / 7.5 / 10 |
|
Turret slide (top) on the counter spindle |
|
|
|
X / Y / Z |
mm |
– |
|
快移速度X/Y/Z軸 |
m/min |
– |
|
進給力 (X/Y/Z) |
kN |
- |
|
副主軸刀架 |
|
|
|
X / Z |
mm |
- |
|
快移速度X / Z |
m/min |
- |
|
Feed force X / Z |
kN |
- |
|
Tailstock |
|
|
|
行程（液壓） |
mm |
2,025 trailed (NC cont.) |
|
力 |
kN |
18 |
|
Centre location |
MT |
5 |
|
|
|
|
|
機床重量 |
kg |
10,000 |
